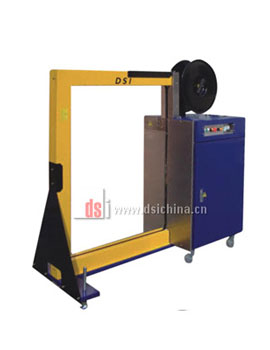

DBA-300 Automatic, Side Seal
Features & Specification
• This machine is specially designed for packing large-sized articles(like air conditioners,refrigerators, motorcycles,etc.). A transfer line and an electric eye unit are connected to the front and rear of the machine respectively to make the binding process fully automated or run
Applications
in a completely unmanned manner • The workbench height can be adjusted according to the transfer line • Style of binding:Manual and foot switches;single- and multiple-strip parallel binding or free selection from 1 strip to 4 strips via automatic photoelectric control
Specification
| Dimension | W1610 x D625 x H1840mm(arch W600 x H1450) |
|---|---|
| Net weight | Net.225kgs |
| Shipping weight | 300kgs |
| Strap width | Polypropylene Width;9,10,12,13.5,15.5,19mm |
| Power | 0.85KVA 1ph, 100V-240V, 50/60Hz;3ph, 380V,50/60Hz |
| Speed | 2.5sec/min.a cycle(arch W1450 x H600) |
| Package | Heavy package with conveyer |
| Arch size |
